Model IPG 50
Precision internal grinding IPG50 CNC is compact machine delivering high productivity at very competitive price. This machine is ideally suitable for precision grinding application of components with small bores. Machine can be offered with High frequency spindles or Belt Driven grinding spindles as per application requirement
Machine Wise Specification - IPG50
| Model | Type | IPG 50 |
|---|---|---|
| Max grinding bore dia | MM | 50 |
| Chuck size max | Moe | 220 |
| H.F wheel spindle speed | RPM | 45000 |
| Axes X/Z stroke | MM | 150/300 or 400 |
| Rapid X/Z | M/ MIN | 10 |

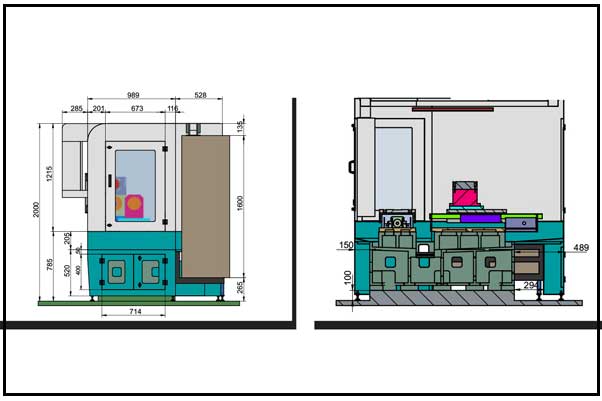

| Machine floor area* | MM | 2500 x 1600 |
| Machine weight | KG | 4000 |
