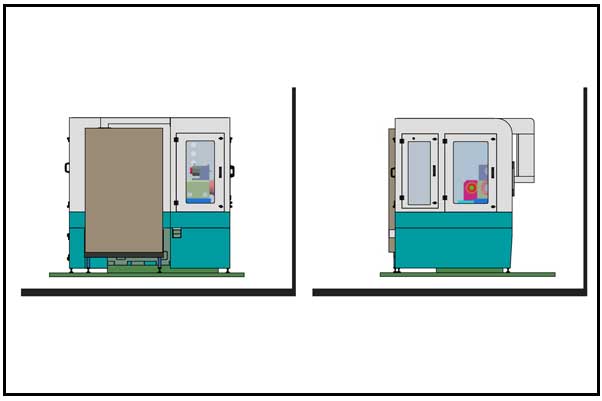

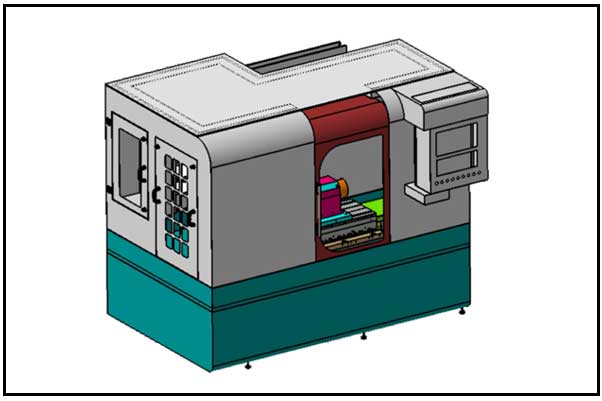

Model IPG 100
This is a compact and Medium machine for high precision internal bore & face grinding of components in medium to High Production volumes. Suitable for small components like connecting rods, bushes, fuel injection parts etc. The machine is capable for grinding with CBN or conventional abrasives, tooled up with High Frequency Spindles for optimum productivity.
Machine Wise Specification - IPG100
| Model | Type | IPG 100 |
|---|---|---|
| Max grinding bore dia | MM | 100 |
| Chuck size max | MM | 300 |
| H.F wheel spindle speed | RPM | 45000 |
| Axes X/Z stroke | MM | 150/300 or 400 |
| Rapid X/Z | M/ MIN | 10 |
| Machine floor area* | MM | 2500 x 1800 |
| Machine weight | KG | 5000 |
